AUTOMOTIVE ELECTRCAL COIL EXTENSIONS
RSA500
13 PinSocket Assembly

The Ring RSA500 13 Pin Socket Assembly is suitable for connecting to caravans with 13 pin plugs. Includes a fog cut out to eliminate reflected glare for the vehicle's fog lights.
  • 13 pin socket assembly with fog cut out
  • Suitable for caravans
  • Pre-wired - quick and easy fitment
  • Includes connectors and grommets
line
EC706
7 Core Electrical Coil (6 x 1mm², 1 x 2mm²)

Thin wall cores. Black polyurethane sheath
Complete with 2 rubber moulded plugs 24N to ISO 1185.

  • Working length 3 metres

Individually packed
line
EC707
7 Core S Type Coil Extension (6 x 1mm², 1 x 2mm²).

Thin wall cores. Black polyurethane sheath.
Complete with 2 rubber moulded plugs 24S to ISO 3731.

  • Working length 3 metres.

Individually packed.
line

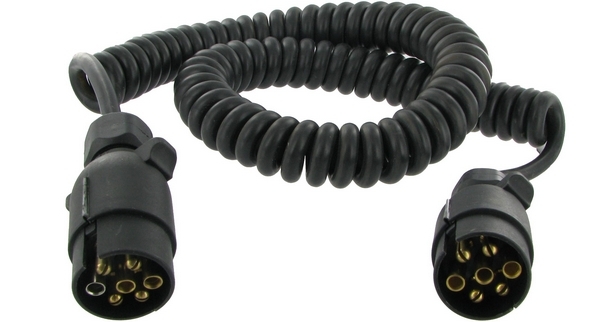

TP3775
7 Core 12N Type Coil Extension (7 x 0.75 mm²)

Thin wall cores. Black polyurethane sheath.
Complete with 2 x  12N type plugs.

  • Working length 5 metres.

Individually packed.
line
TP5526
7 Core 24N Type Coil Extension (6 x 1mm², 1 x 1.5mm²).

Thin wall cores. Black polyurethane sheath.
Complete with 2 x  24N type metal plugs.

  • Working length 3.5 metres.

Individually packed.
line
TP5527
7 Core 24S Type Coil Extension (6 x 1mm², 1 x 1.5mm²)

Thin wall cores. Black polyurethane sheath.
Complete with 2 x  24S type metal plugs.

  • Working length 3.5 metres.

Individually packed.
line
TP4030
7 PIN PLASTIC TRAILING SOCKET 12N

Thin wall cores. Black polyurethane sheath.
Complete with 12N plug and socket

  • Working length 5 metres.

Individually packed.
line
00559670
15 PIN PLASTIC TRAILING SOCKET 24V

Thin wall cores. Black polyurethane sheath.
Complete with 2 X 15 PIN sockets

  • Working length 3.5 metres.

Individually packed.
