MARINE FUSE HOLDER.AES Supplies Ireland Ltd - AES Supplies Ireland Ltd

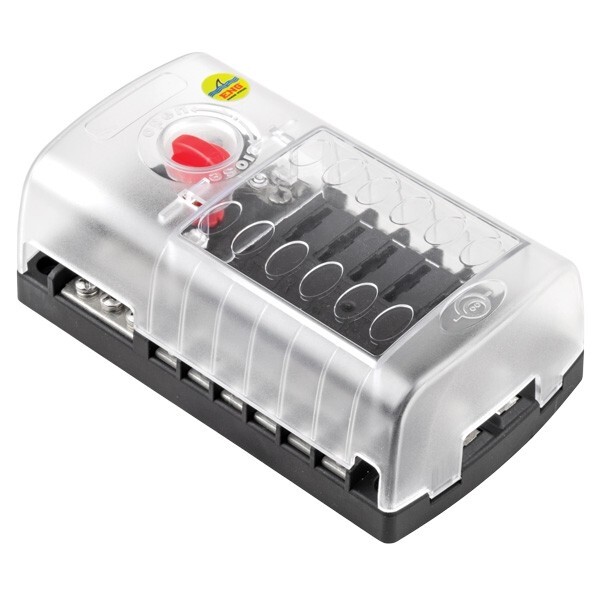

AVFH020

12 Way Marine Blade Fuse Holder

Marine type standard blade fuse holder with cover and negative bus bar.

• Lockable splash covers.
• Dual inputs for power on both models.
• Suits ATC/ATO fuses/circuit breakers.
• 4.3mm screw terminals.
• Hold 2 spare fuses inside cover.
• Supplied with 84 icon decal set.
• 12 circuit negative ground bus.
• Inbuilt negative busbar popular in marine applications where ground returns need to run back to the battery.
• Ideal for use with trucks, buses, boats & RV’s.
• 94mm(W) X 164mm (L) X 60mm(H)

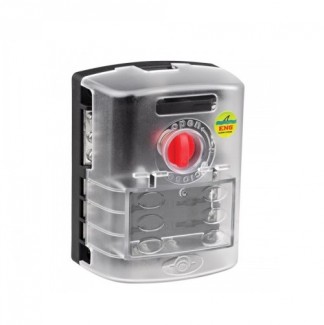

FBB6M

6 Way Marine Blade Fuse Holder

Marine type standard blade fuse holder with cover and negative bus bar.

• Transparent screw down cover
• 2 positive circuits and 1 negative circuit
• Max 30amps per output
• Max 100amps per box
• Dimensions 55mm (H) x 93mm (W) x 123mm (L)
